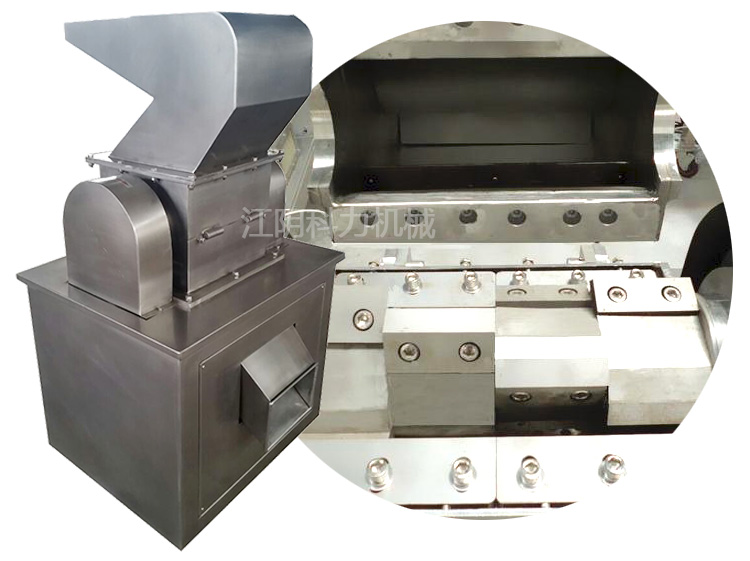

GCSJ-crusher
Main uses
The coarse crusher is mainly used in medicine, food, chemical industry, metallurgy, construction and other industries to process hard and hard materials. The machine has a wide range of applications, it is not limited by the viscosity, hardness, softness and fiber of materials. Except for stone and metal materials that can not be crushed, it can have a better crushing effect on any material. Therefore, it is also called "universal coarse crusher". Its main function is to roughly crush large materials into small particles, resulting in less fine powder, or even no fine powder. It can also be adjusted to achieve more powder and less particles. It can also be used as the supporting equipment of the previous process of micro comminution, with comminution particle size of 2-10 mm and hourly output of 100-5000 kg.
Working principle of coarse crusher
The coarse crusher is a horizontal pulverizing structure. The material enters the pulverizing chamber from the feed hopper, and is crushed by the impact and shearing of the rotary knife and the fixed knife. The material flows to the outlet automatically under the effect of the rotating centrifugal force. The machine is designed according to GMP standard. The whole machine is made of stainless steel. It has simple structure, convenient cleaning and low noise
| Type | 200 | 300 | 400 | 500 | 600 |
| Production capacity（kg/h） | 50-200 | 800-500 | 150-1000 | 200-1800 | 300-3000 |
| Feed size（mm） | ≤1500×100 | ≤250×120 | ≤350×180 | ≤400×180 | ≤500×180 |
| Crushing fineness（mm） | 2.5-20（Adjustable） | ||||
| Spindle speed(r/min) | 650 | 650 | 570 | 530 | 530 |
| Motor power(kw) | 4 | 5.5-7.5 | 7.5 | 15 | 18.5-22 |
| Weight(kg) | 250 | 350 | 400 | 500 | 800 |
| Outline size LWH mm | 650×600×1250 | 720×700×1300 | 1000×800×1400 | 12500×1000×1700 | 1330×1000×1700 |
