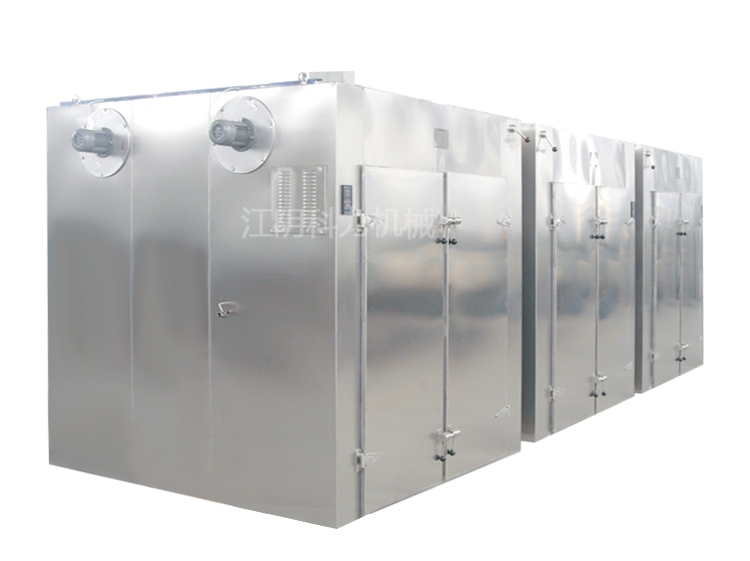

Hot air circulation oven

Summary
After several upgrades, the average thermal efficiency of the hot air circulation oven is about 30%. It adopts centrifugal fan, external circulation of the oven and manual temperature control. The CT-C series oven has been formed after several transformations. All of the series adopt axial flow fan, equipped with automatic constant temperature control system, and equipped with computer control system for selection. The heat efficiency is about 70%. It uses steam or electricity as heat source and axial-flow fan to heat the air in the way of convective heat exchange of heat exchanger. The heat transfer of hot air laminar flow is carried out through the drying plate and materials. Fresh air is replenished from the air inlet, waste hot and humid air is discharged from the dehumidification outlet, and fresh air is replenished and hot and humid air is discharged continuously, so as to maintain the appropriate relative humidity in the oven. The biggest feature of this series of ovens is that part of the hot air circulates in the oven, and the whole circulation process is closed, thus enhancing heat transfer and saving energy.
General purpose drying equipment with wide adaptability is widely used for heating, curing, drying and dehydration of materials and products in pharmaceutical, chemical, food, light and heavy industries. For example: API, raw medicine, Chinese herbal pieces, powder, granules, granules, big and small honey pill packaging bottles, pigments, dyes, dehydrated vegetables, dried fruits and fruits, sausages, plastic resin, electrical components, paint baking, etc.
1、 The heating sources include steam, electricity, far infrared and electric steam, which are available for users to choose.
2、 Use temperature, steam heating 50-120 ℃, if electric heating or higher temperature is required, please specify when ordering
3、 Common steam pressure is 0.2-0.8mpa (2-8kg / cm2).
4、 It is equipped with electric heating, 15kw is calculated according to type I, and 5-8w / h is practical.
5、 Special requirements are stated at the time of ordering.
6、 Non standard oven price negotiable.
Seven, the use temperature is greater than 120 ℃ or less than 60 ℃, should be noted in the order.
8、 The size of drying car and drying plate is uniform and interchangeable.
9、 Oven size: 450 × 640 × 45 (mm)
Main features:
1. It can be used to dry all kinds of materials. It is a general drying equipment.
2. Most of the hot air circulates in the box with high thermal efficiency and energy saving.
3. By using the forced ventilation function, the box is equipped with adjustable air distribution board, the material is dry and even, and the heat source can be steam and electricity.
4. According to the user's requirements, the temperature can reach 350 ℃.
5. The whole machine has low noise, stable operation, automatic temperature control and convenient installation and maintenance.

Model / parameter

Amount of each drying

Allocated power

Steam consumption

Heat dissipation area

Air volume

Temperature difference

Mixing oven

Outline size

weight

Equipped with drying car

RXH-B-0

30

0.45

6

5

3450

±2

24

1370×1200×2200

800

1

RXH-B-I

120

0.45

20

20

3450

±2

48

2300×1200×2200

1500

2

RXH-B-II

240

0.9

45

40

6900

±2

96

2300×2210×2200

1800

4

RXH-B-III

360

1.35

70

80

10350

±2

144

3300×2210×2200

2200

6

RXH-B-Ⅳ

480

1.8

90

100

13800

±2

192

4460×2210×2200

2800

8
