Summary:
In the production of modern pharmaceutical and food industries, many raw and auxiliary materials are products made of solid particles, so that they can quickly carry out physical and chemical reactions, generally, the first step is to crush the solid particles. In order to deal with even particles, an ideal crushing equipment is needed, such as simple mechanism, convenient operation, easy cleaning, good sealing, high crushing efficiency, uniform fineness, no dust flying. The equipment condition can be attached with the international production management specification (FDA) and the pharmaceutical production management specification (GMP) standards. It is a kind of comminuting equipment to deal with the fineness of solid particles in the production of pharmaceutical industry. The above-mentioned pulverizers belong to the old models in the 1950s, with complex structure and large size, high labor intensity, high noise and energy consumption, low efficiency, inconvenient cleaning of equipment, and health conditions not up to GMP standards. For this reason, the new model is used to replace the old one, and it is engaged in the crushing treatment of solid particles in the production of drugs and food. It is one of the subjects in the new century. According to the investigation and analysis of the company, this equipment has great potential. Gfsj high efficiency crusher is a new product developed by domestic pharmaceutical and food factories, which digests the advantages of similar products at home and abroad. The utility model has the characteristics of grinding the blade and the whole grain on the back of the blade. The machine has the advantages of reasonable design, advanced comminution technology, low energy consumption, high efficiency, low noise and strong comminution fineness.
Main structure and working principle of crusher:

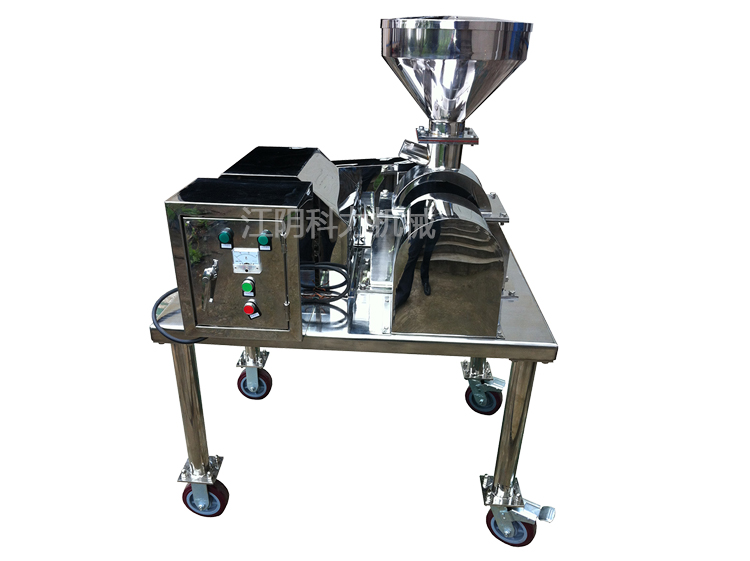

The machine is composed of feeding hopper device, crushing chamber, rotary cutter shaft screen motor drive and dust collection box. The crushing chamber, feed hopper device and screen are all made of stainless steel, which fully meet the requirements of pharmacology and health. It is also convenient for users to wash and clean the crushing chamber. The grinding chamber is equipped with a high-speed rotating shaft and a blade, the shaft end is supported by a bearing seat, and the 6309 bearing is installed inside as the benchmark, which rotates. The shaft and the blade are made of high-quality steel materials through heat treatment to enhance the hardness and wear resistance. The grinding chamber is composed of two kinds of blades, which are selected according to different materials. The machine is in the form of manual feeding device.
working principle:
After the materials are stacked by the feed hopper, they are sent to the crushing chamber. The materials are impacted and sheared by the high-speed grinding blade, and at the same time, they are also under the downward pressure of the air flow. The fine materials are dropped from the screen into the accumulator, and the coarse materials continue to be impacted and sheared to meet the requirements of the product.

Technical parameter:
