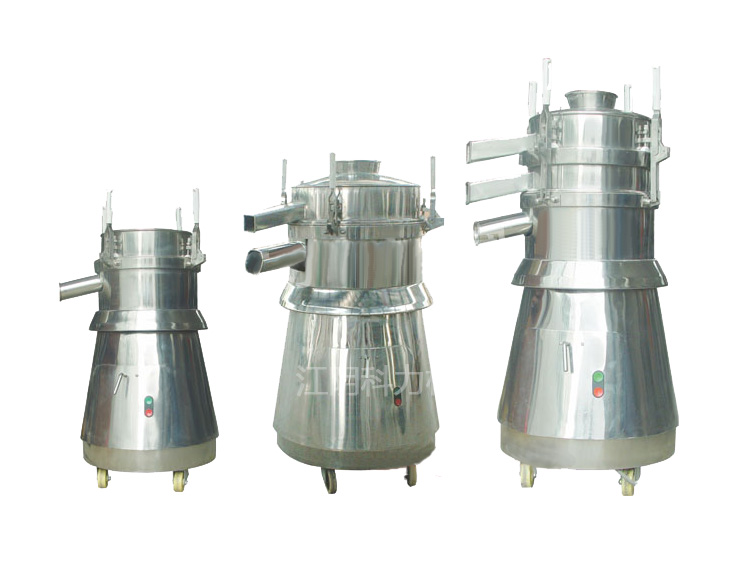

ZS-Oscillating screen

Main uses
ZS series layered screen is suitable for flow operation, and is an ideal equipment for continuous discharge of coarse and small particles with unequal proportion
Structure and performance
This machine is composed of hopper, oscillating chamber, coupling, motor, etc. The oscillating chamber is composed of eccentric wheel, rubber software, main shaft, bearing, etc. The adjustable eccentric weight is driven by the motor and transmitted to the center line of the main shaft. Under the unbalanced state, the centrifugal force is generated to force the material to change and form the track vortex in the screen. The amplitude of the weight adjuster can be adjusted according to different materials and screens. The whole machine has compact structure, small volume, no dust, low noise, high output, low energy consumption, convenient movement and maintenance.
technical parameter
Type ZS-350 ZS-515 ZS-650
Throughput(kg/h) 60-200 100-500 180-1200
Sifted mesh(mesh) 12-200 12-200 12-200
power(kw) 0.55 0.75 1.5
Spindle speed(rpm) 1380 1370 1370
Outline size(L×W×H)(mm) 540×540×1060 710×710×1290 880×880×1350
weight(kg) 100 180 250
