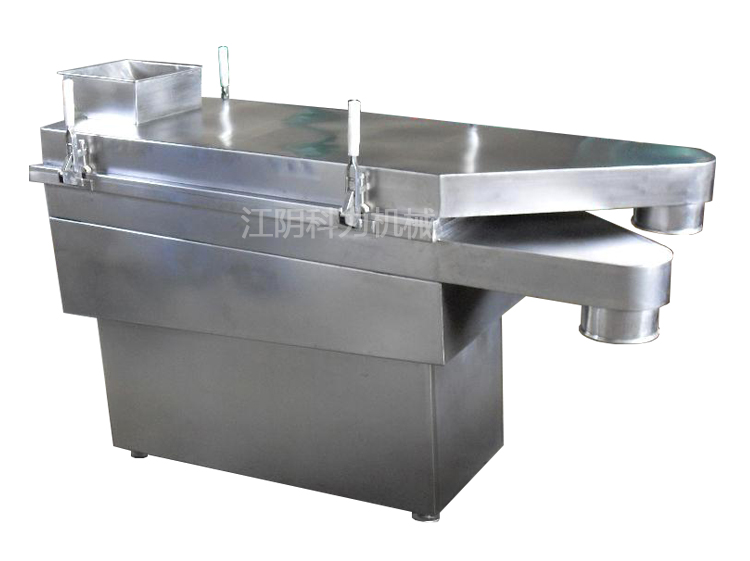

ZS square vibrating screen
This machine is designed and improved by introducing foreign advanced technology and combining with the requirements of GMP. It is widely used in pharmaceutical, chemical, food, metallurgy, electronics and other industries.
Working principle
This machine consists of screen box, vibration source and shock absorber. The vibrating frame and screen box are connected with 4-12 groups of soft rubber shock absorbers, which are fixed up and down to generate centrifugal force. The floating amplitude is controlled by the shock absorber, so that the material has a process of downward shaking and downward layered filtering, so as to achieve the effect of grading and screening.
technical parameter
| Type | Throughput（kg/h） |
Sifted mesh | power | Vibration frequency | Outline size(L×W×H) | weight |
| ZS-0.3m² | 80-300 | 3-150(mesh) | 0.2（kw） | 1400(r/min) | 1110×500×900(mm) | 150（kg） |
| ZS-0.5m² | 100-450 | 3-150(mesh) | 0.2（kw） | 1400(r/min) | 1250×660×900(mm) | 250（kg） |
| ZS-0.8m² | 300-750 | 3-150(mesh) | 0.2×2（kw） | 1400(r/min) | 1500×800×900(mm) | 320（kg） |
| ZS-1.2m² | 500-1100 | 3-150(mesh) | 0.4×2（kw） | 1400(r/min) | 1980×1050×990(mm) | 400（kg） |
| ZS-1.8m² | 800-1600 | 3-150(mesh) | 0.4 ×2（kw） | 1400(r/min) | 2400×1200×1500(mm) | 600（kg） |
| ZS-2.2m² | 1000-2000( | 3-150(mesh) | 0.4×2（kw） | 1400(r/min) | 2800×1200×1600(mm) | 800（kg） |
