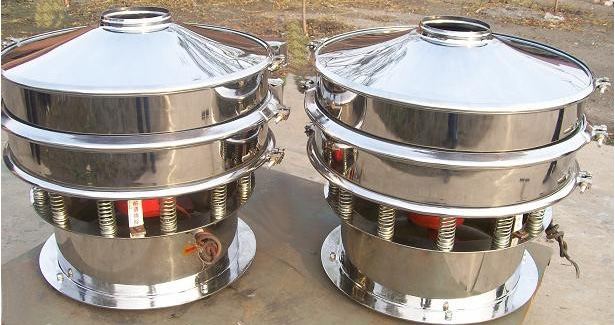

This machine is suitable for the particle size classification of materials in pharmaceutical, chemical and food industries. It is an efficient and high-precision screening machine. The utility model has the advantages of low noise, high efficiency, compact structure, convenient operation, stable operation, large processing capacity and strong applicability.
Working principle
The vertical vibration motor is used as the vibration source, and eccentric weight is installed at the upper and lower ends of the motor. The rotating motion of the motor is transformed into horizontal, vertical and inclined three-dimensional motion, and then the motion is transmitted to the screen surface to complete the separation function of materials. Adjusting the upper and lower phase angles can change the movement track of the material on the screen surface.
Characteristic
High efficiency, exquisite and durable design. It can be applied to the screening of most powders. It is easy to change the net, operate and clean. Mesh not blocked, powder not flying, can be screened to 325 mesh. Impurities and coarse materials are discharged automatically and can be operated continuously. Unique grid design, long use time of screen and fast change of screen. Small size, no space occupation, convenient transportation. It can be used in single layer or multi-layer classification, up to 5 layers, no more than 3 layers is recommended.
| Type | ZS400 | ZS600 | ZS800 | ZS1000 | ZS1200 |
| Throughputkg/h | 50-450 | 100-1000 | 150-2000 | 20-2500 | 800-5000 |
| Sifted mesh（mesh） | 5-325 | 5-325 | 5-325 | 5-325 | 5-325 |
| Vibration frequencySub /min | 1500 | 1800 | 2100 | 2800 | 3500 |
| powerkw | 0.37 | 0.75 | 0.75 | 1.1 | 1.5 |
| Outline size The two level (cm) | 56×50×110 | 69×71×115 | 110×95×115 | 120×110×128 | 133×130×128 |
| weight | 200 | 250 | 320 | 420 | 500 |
