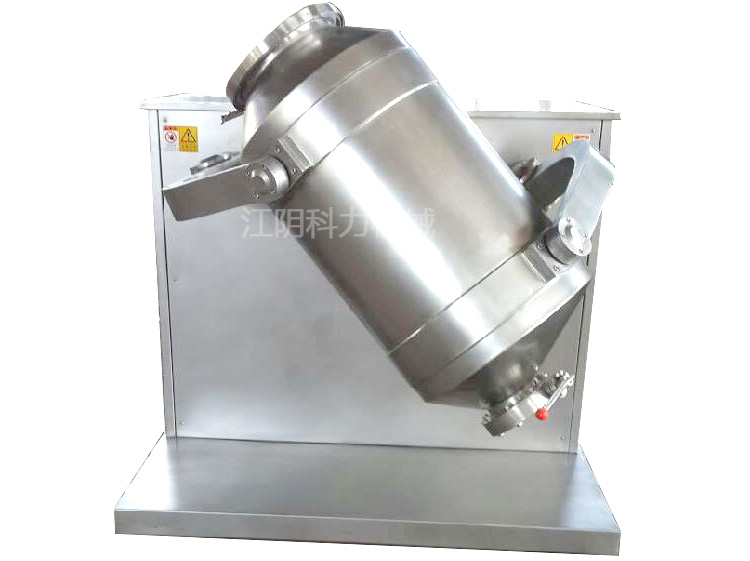

SBH-3D mixer
Main uses
This machine is widely used for mixing dry powder materials in pharmaceutical, chemical, food and other industries. It can also mix several materials with different specific gravity and different particle size quickly and evenly.
Characteristic
The machine uses the unique three-dimensional swing, translation rotation and rock principle to produce a strong alternating pulse motion, continuously pushing to mix materials. The eddy produced by the machine has a changing energy gradient, so it can produce excellent mixing effect. The machine also has the advantages of smooth operation, low noise, high loading coefficient and short mixing time.
This machine is widely used for mixing dry powder materials in pharmaceutical, chemical, food and other industries. It can also mix several materials with different specific gravity and different particle size quickly and evenly.
Characteristic
The machine uses the unique three-dimensional swing, translation rotation and rock principle to produce a strong alternating pulse motion, continuously pushing to mix materials. The eddy produced by the machine has a changing energy gradient, so it can produce excellent mixing effect. The machine also has the advantages of smooth operation, low noise, high loading coefficient and short mixing time.
| TYPE Model |
Bin volume（L） |
volume（L） Max loading volume |
Spindle speed（r/min） | Power（kw） Motor power |
Boundary dimension (L × w × h)（mm） Overall dimensions（L×W×H） |
weight（kg） Weigh |
| SBH-10 | 10 | 7 | 0-20 | 0.18 | 640×620×550 | 120 |
| SBH-25 | 25 | 17 | 0-15 | 0.55 | 900×900×75 | 150 |
| SBH-50 | 50 | 35 | 0-15 | 0.75 | 970×950×120 | 300 |
| SBH-100 | 100 | 70 | 0-15 | 1.5 | 1200×1600×1500 | 500 |
| SBH-200 | 200 | 140 | 0-15 | 2.2 | 1400×1800×1600 | 800 |
| SBH-400 | 400 | 280 | 0-12 | 4 | 1700×2100×1850 | 1200 |
| SBH-600 | 600 | 420 | 0-11 | 5.5 | 2100×2400×2250 | 1500 |
| SBH-800 | 800 | 560 | 0-10 | 7.5 | 2200×2500×2300 | 2000 |
| SBH-1000 | 1000 | 700 | 0-10 | 7.5 | 2280×2600×2500 | 2500 |
