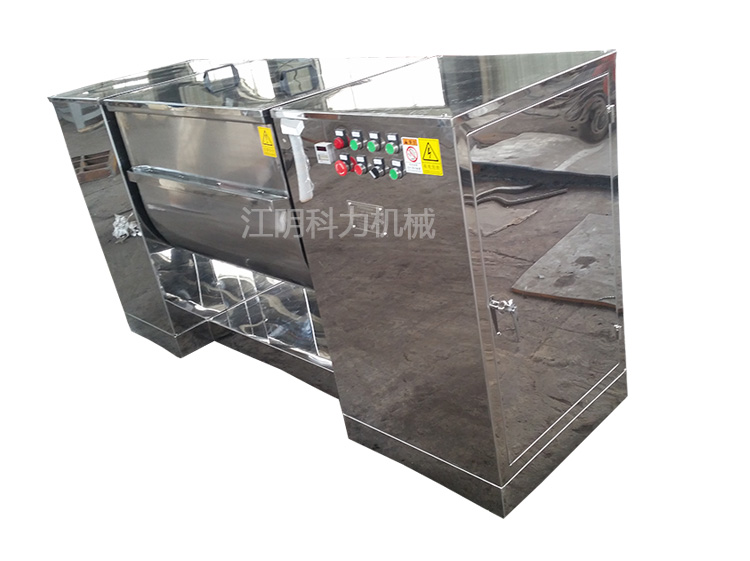

CH-Trough mixer
Main uses
Suitable for pharmaceutical, chemical, food and other industries, evenly mixing powder or paste materials.
Working principle
Through mechanical transmission, the machine makes the S-type agitator rotate, and pushes the material to and fro to mix evenly. During the operation, the electric control is adopted, and the mixing time can be set. When the time comes, the machine will stop automatically, and the material will be poured electrically, so as to improve the mixing quality of each batch of materials and achieve high uniformity mixing.
Suitable for pharmaceutical, chemical, food and other industries, evenly mixing powder or paste materials.
Working principle
Through mechanical transmission, the machine makes the S-type agitator rotate, and pushes the material to and fro to mix evenly. During the operation, the electric control is adopted, and the mixing time can be set. When the time comes, the machine will stop automatically, and the material will be poured electrically, so as to improve the mixing quality of each batch of materials and achieve high uniformity mixing.
| TYPEModel | CH-50 | CH-100 | CH-150 | CH-200 | CH-300 | CH-400 | CH-500 |
| Blade form | S single propeller | S single propeller | S single propeller | S single propeller | S single propeller | S single propeller | S single propeller |
| volume | 30 | 60 | 90 | 140 | 180 | 250 | 300 |
| Impeller rotation(rpm) | 24 | 24 | 24 | 24 | 24 | 20 | 20 |
| flip angle（r） | <105 | <105 | <105 | <105 | <105 | <105 | <105 |
| Stirring motor（kw） | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| Charging motor（kw） | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 |
| Outline size | 1265×430 ×720 |
1580×500 ×830 |
1685×600 ×1000 |
1850×600 ×1000 |
2160×70 0×1200 |
2280×700 ×1250 |
2450×700 ×1250 |
| weight（kg） |
200 | 300 | 650 | 720 | 750 | 780 | 820 |
